Taramps Pro 40A Battery Charger - 560W Max Output, Bivolt 127/220VAC Input with LED Indicator - High Power Car Audio System Charger for Vehicles, Boats & RVs

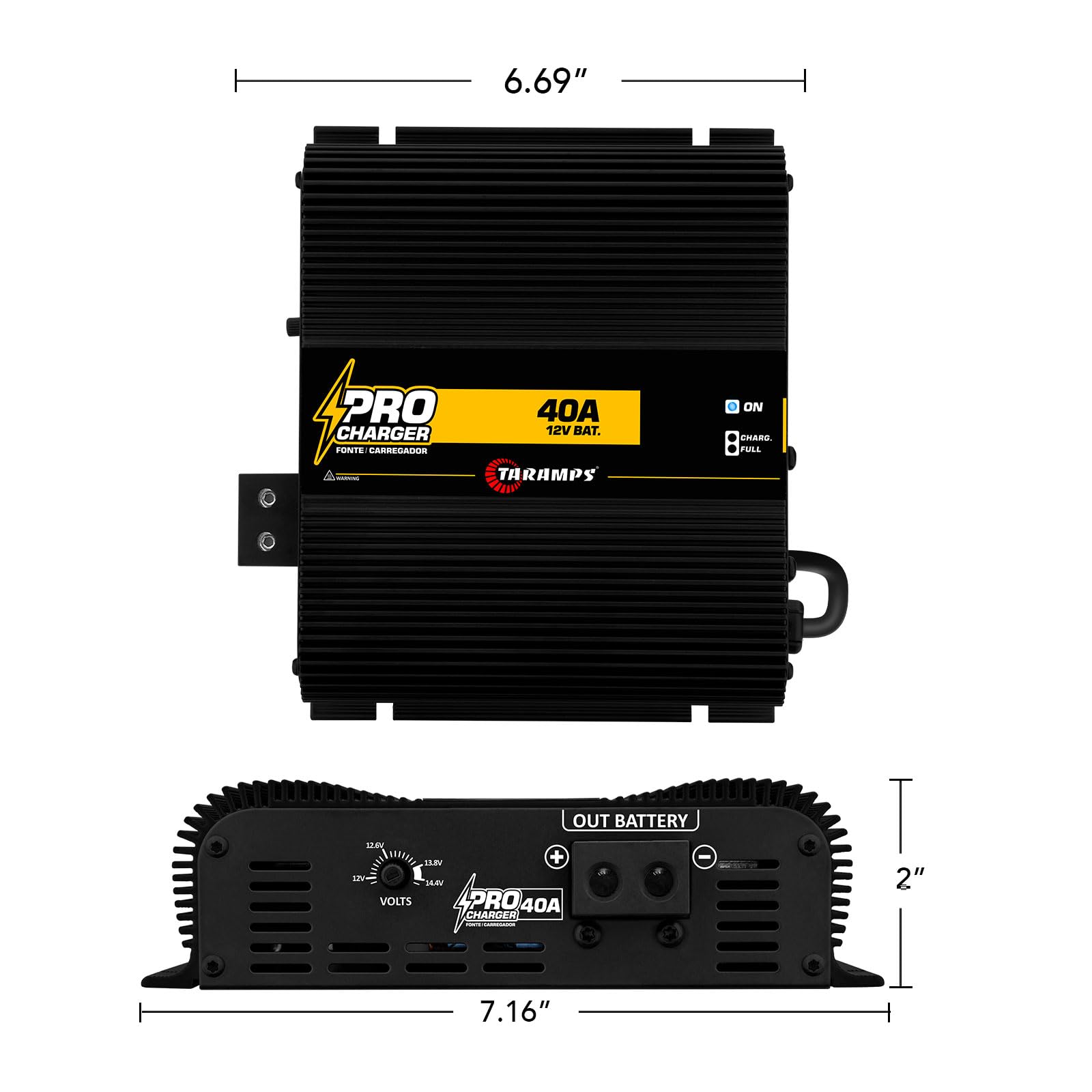

Previous page Next page 1 Charger Settings 2 Outlet Connection 3 Connection Example 4 Parallel Connection 5 LED Indicator/Protection Pro Charger 40A Main Specs Voltage Bivolt Automatic (127 / 220VAC) AC Input Voltage 127V 100 ~ 140V AC AC Input Voltage 220V 200 ~ 240V AC Max. Output Current 40A Max. Output Power Rating 560W Average Efficiency 90% Max. Input Current (127V) 11A Max. Input Current (220V) 09A Maximum Float at Full Load <5% (40A @14.2V) Input Fuse (Internal) 10A Output Voltage 12V ~ 14.4V ± 2% Cable 7 AWG Circuit Breaker 40A Learn More About the Pro Charger Line Pro Charger 40A Buying Options Pro Charger 90A Buying Options Pro Charger 180A Buying Options Pro Charger 250A Add to Cart Customer Reviews — — 4.6 out of 5 stars 21 2.5 out of 5 stars 12 Price — — — $379.00$379.00 Maximum Output Current 40A 90A 180A 250A Max. Output Power Rating 560W 1300W 2590W 3600W Input Fuse (internal) 10A 20A 40A 40A Weight 2.64lb 4.09lb 11lb 13.86lb Dimensions (WxHxD) 7.16"x2"x6.69" 7.17" x 2.05" x 10.1" 10.55"x2.83"x12.40" 10.71"x2.87"x16.5"

The PRO CHARGER 40A is a modern and efficient battery charger / power supply for automotive system sound, delivering 40A current continuously.

Use a 7 AWG cable and 40A on Circuit Breaker. Please, do not use cables with gauges smaller than recommended.

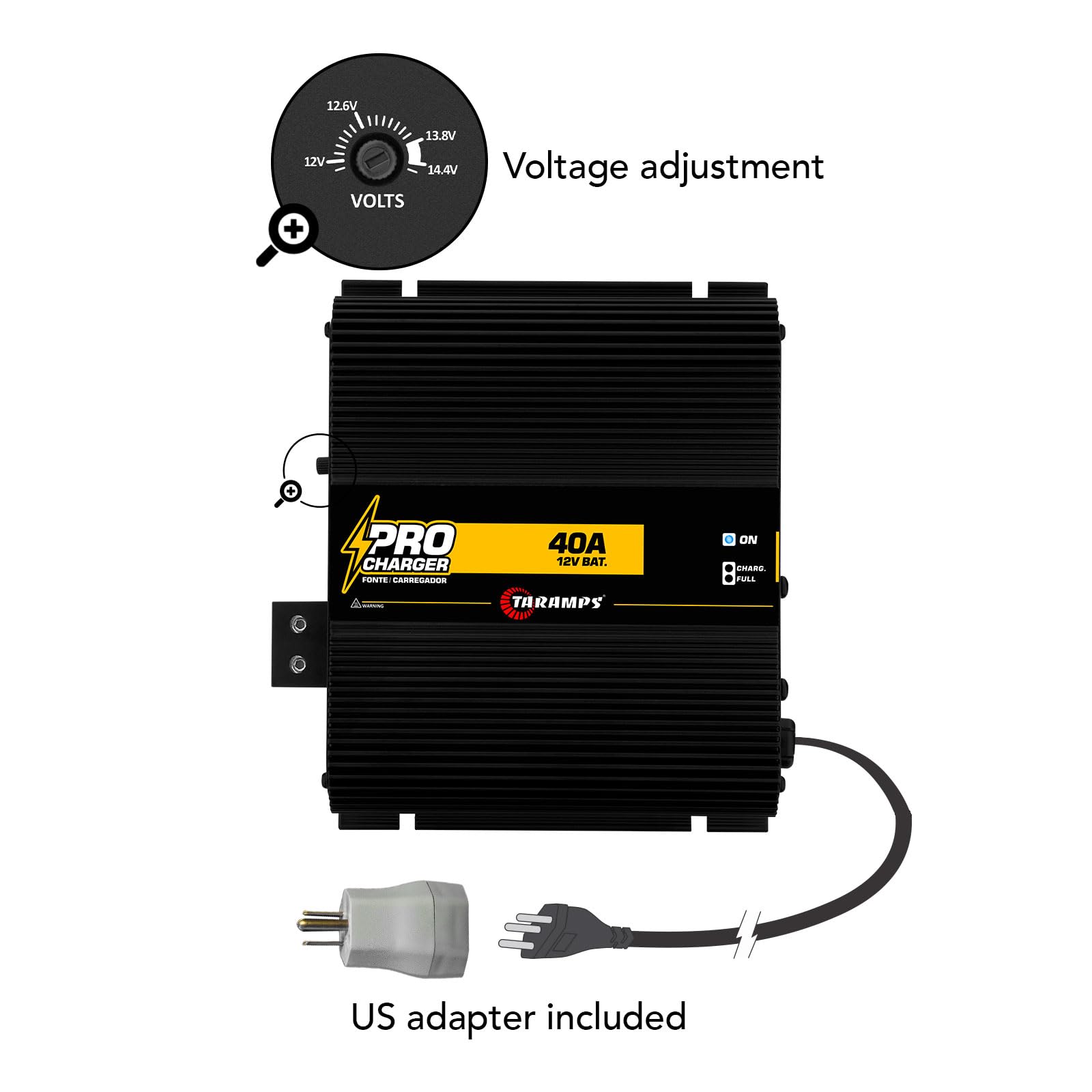

Adjust the output voltage from 12.4V to 14.4V, but it's important do the voltage adjustment before of connect the loads, and for automotive battery recharge, it is recommended to set the output voltage greater than 13.8V.

This equipment has a plug that meets the new Brazilian standard for plugs and sockets (NBR 14136) as per Conmetro resolution nº 11/2006. The plug that comes with the power supply is 10A.

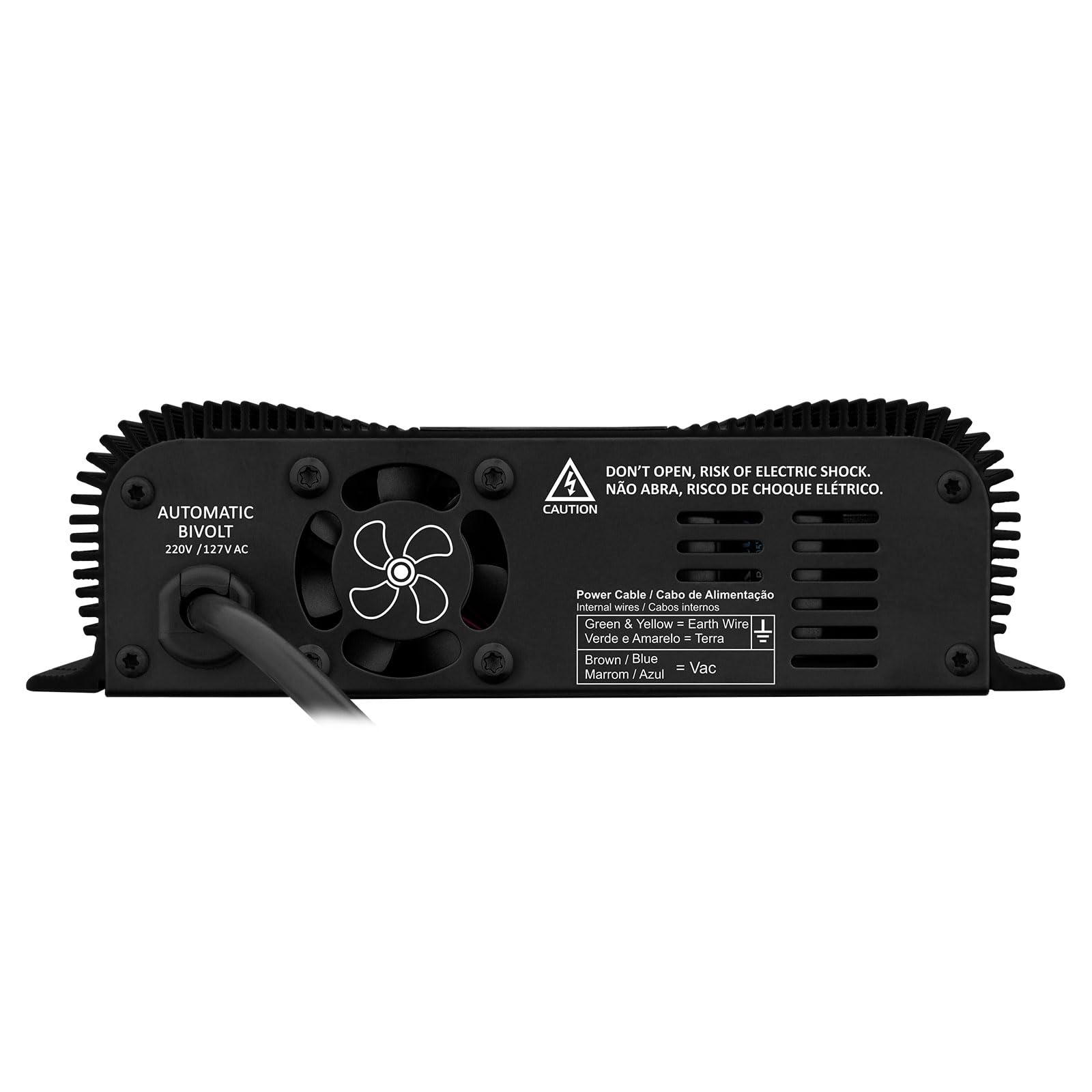

Fan The cooling fan keep on while the PRO CHARGER 40A is AC Powered. Never obstruct the fan and leave a 5cm space on the sides.

This equipment is automatic dual voltage. The input AC voltage must be above 90VAC for 110/127VAC, and above 190VAC for 220VAC.
