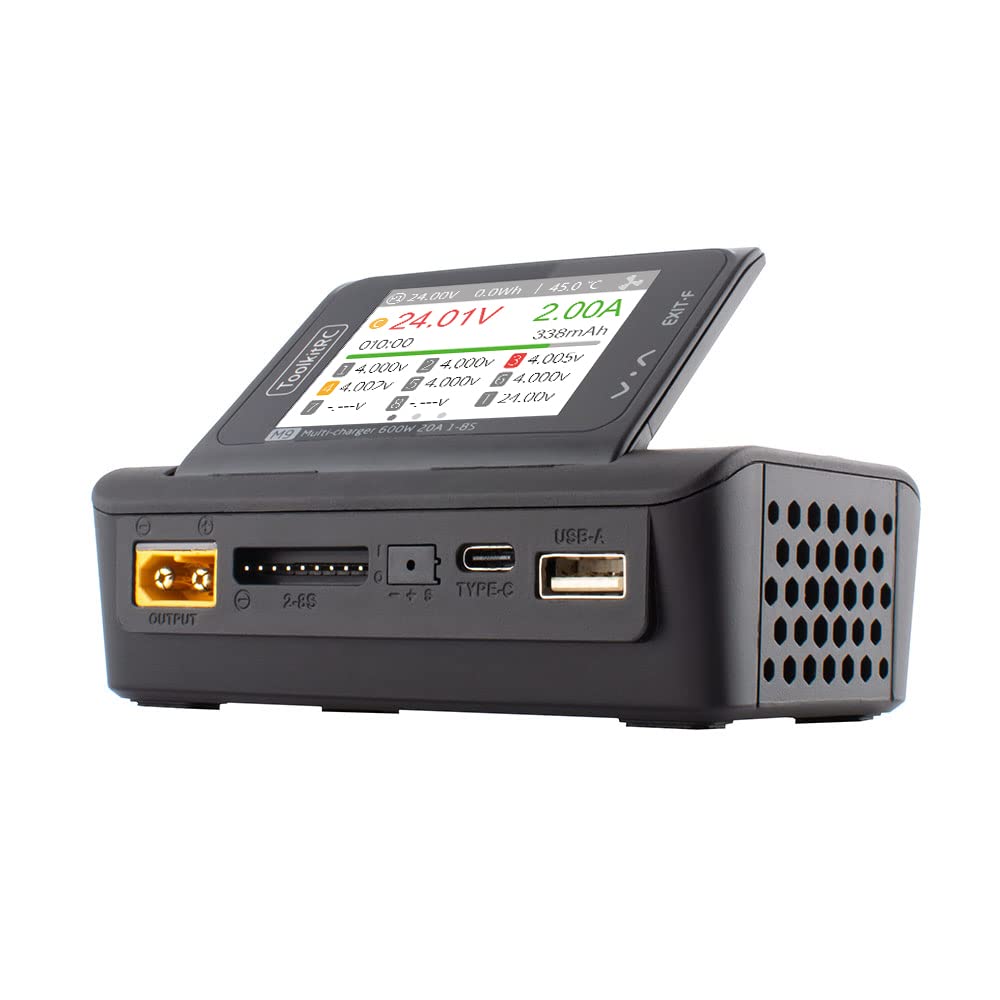

ToolkitRC M9 600W Smart Battery Charger - Dual USB Fast Charging for 1-8S LiPo/LiHV/LiFe Batteries with Audio Alert | Perfect for RC Cars, Drones, and DIY Electronics Projects

Safety Precautions: 1. M9 allows the input voltage of DC 7-35V, ensure that the power supply voltage is consistent, and pay attention to the positive and negative polarity of the power supply when connecting. 2. Do not use this product in the environment of heat source, humidity, flammable and explosive gas. 3. Please use this product under the condition of being guarded to prevent accidents. 4. When the product is not in use, please unplug the input power in time. 5. When using the charging function, please set the current that matches the battery, and do not set too high current for charging, so as not to damage the battery. Specifications Input :7-35V@MAX25A B attery type :LiPo LiHV LiFe Lion LTO@1-8S NiMh @1-20S Pb @1-10S Balance :1000mA @4.2V Accuracy: <0.005V Power: 0.1-20A@600W Discharge power : 0.1-20A@600W Rec/Ext Mode 0.1-3A@20W Internal Mode USB :A+C 5-20V@65W PD QC PPS AFC SCP Voltage :1.0V-5.0V @1-6S Internal resistance :0.1m?-99? @1-8S PWM :880us-2200us@20-400hz PPM: 880us-2200us*8 CH@20-50hz SBUS: 880us-2200us*16 CH@20-100hz PWM :500us-2500us@20-1000hz PPM :880us-2200us*8 CH@50hz SBUS: 880us-2200us*16 CH@74hz Power :1-20A@1-35V Mode: CC+CV LCD :IPS 2.4 inch 320*240 resolution Size: 108mm*71mm*36mm Weight: 235g Size :135mm*81mm*44mm Weight: 330g Packaging included: 1X ToolkitRC M9 Charger

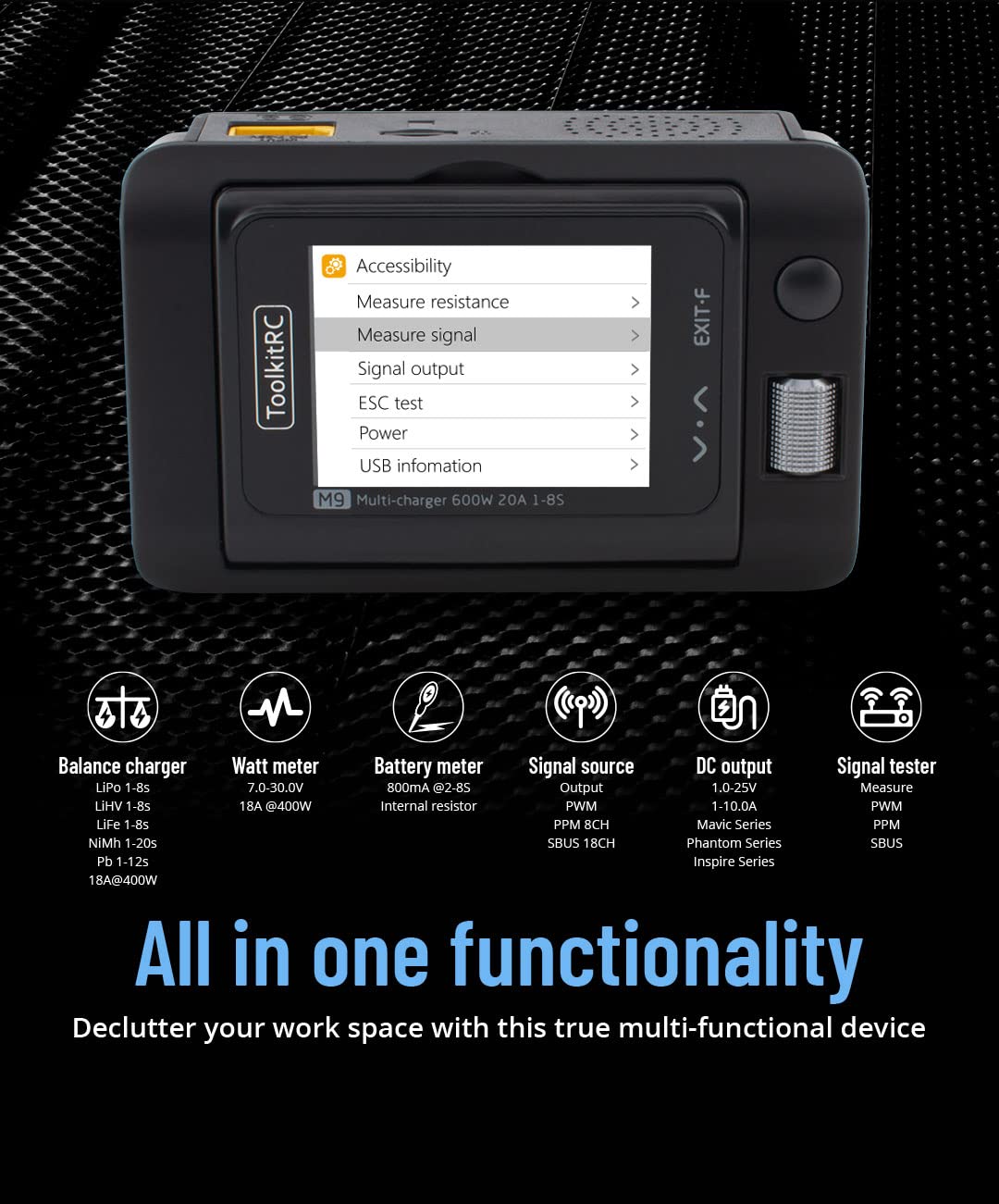

M9 is a multi-function tool chain product, which integrates functions such as balance charge and discharger, electric display, signal measurer, signal source and so on.

It can charge and discharge and balance management of LiPo, LiHV, LiFe, Lion, LTO 1-8S, NiMh 1-20S, PB 1-10S batteries.

Can measure/output PWM/PPM/SBUS signal value with an accuracy of 1 microsecond.

Compatible with mainstream drone batteries, automatically activated and charged.

Simulate the device as a U disk, copy the upgrade file, realize the product firmware upgrade, and modify the custom voice and boot screen.
