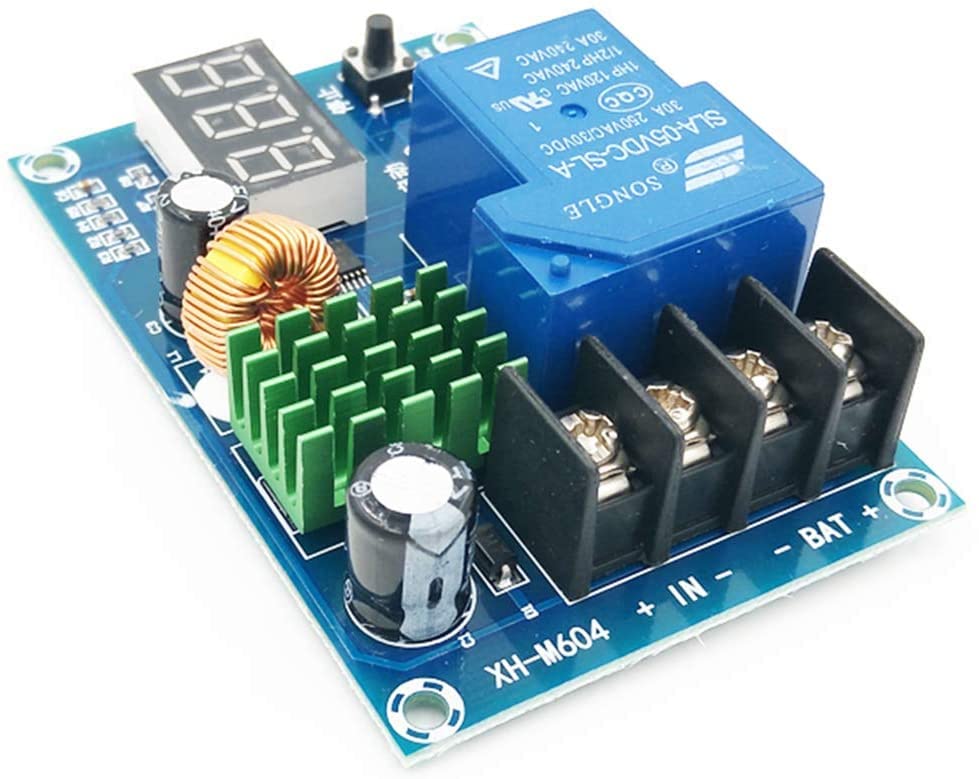

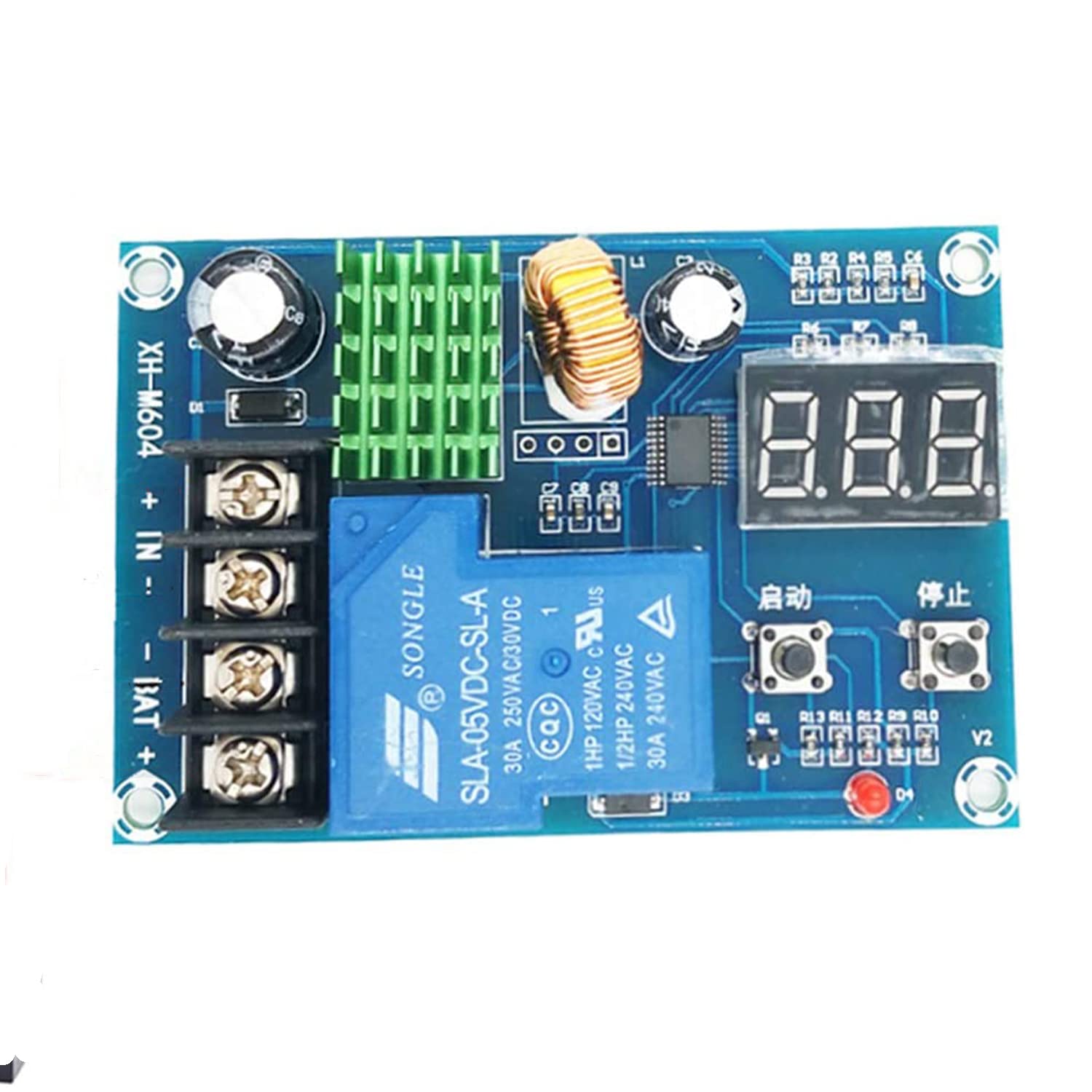

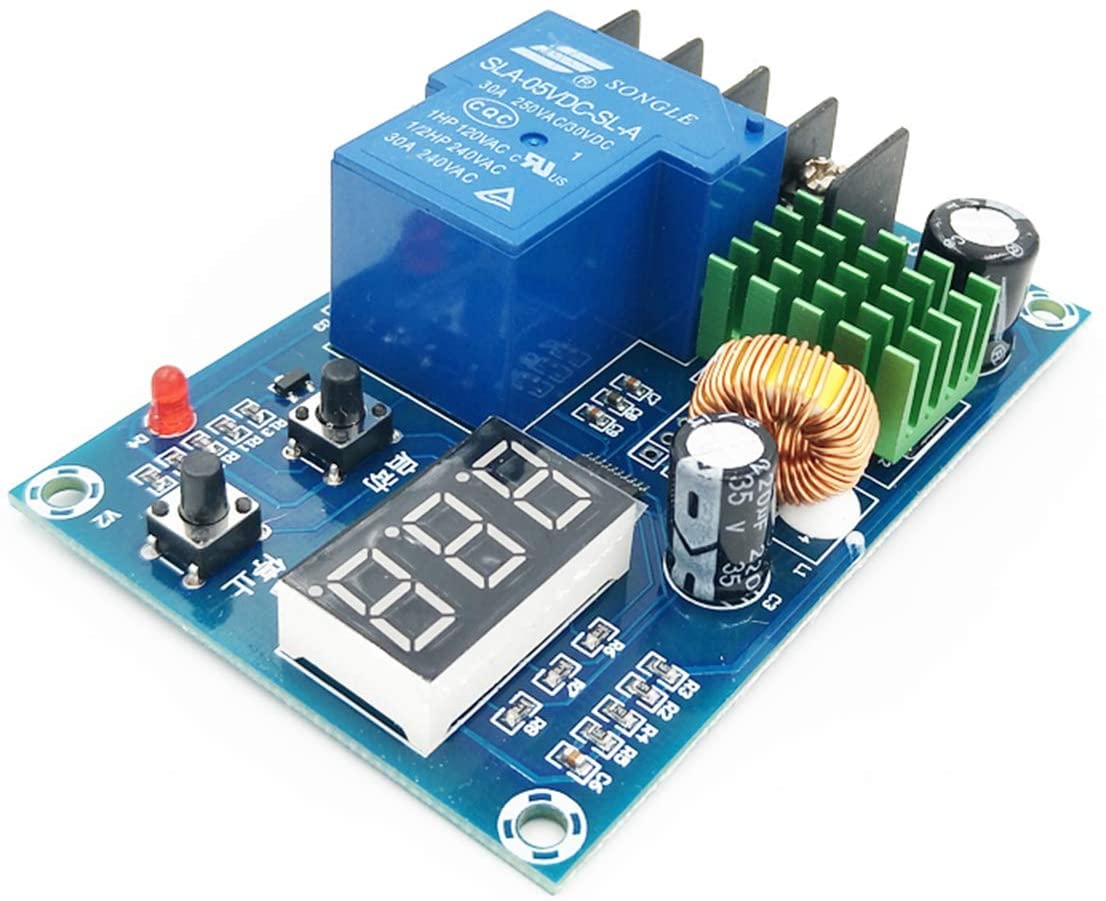

REES52 XH-M604 6-60V Digital Display Battery Charger Protection Board - DC Charging Control Module for Home, Solar Power, RV, DIY Projects | Perfect for Lithium Battery Charging, Solar Panel Systems & Power Banks

Specifications: Input Voltage:DC 6-60V Control current: ≤30A Display Precision:0.1V Control Precision:0.1V Output Type:direct output Voltage Tolerance:+/-0.1V Application Fields:6-60V storage battery Size:81*54*18mm Using Method: Connect the battery first (it will not be displayed if the battery is not connected) Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings When the startup value cannot be increased, please adjust the stop value first. Note: Manual measurement, with small error. Please check size in detail before purchase. Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness. Packing Included : 1 x XH-M604 Charger Protection Board DC 6-60V Battery Charging Control Module with Digital Display for Home Charger Solar Energy

This product is suitable for 6-60V battery charging control, and can set up the modes of charging voltage and stop charging voltage

Suitable for use in home charger, solar energy, Wind generator

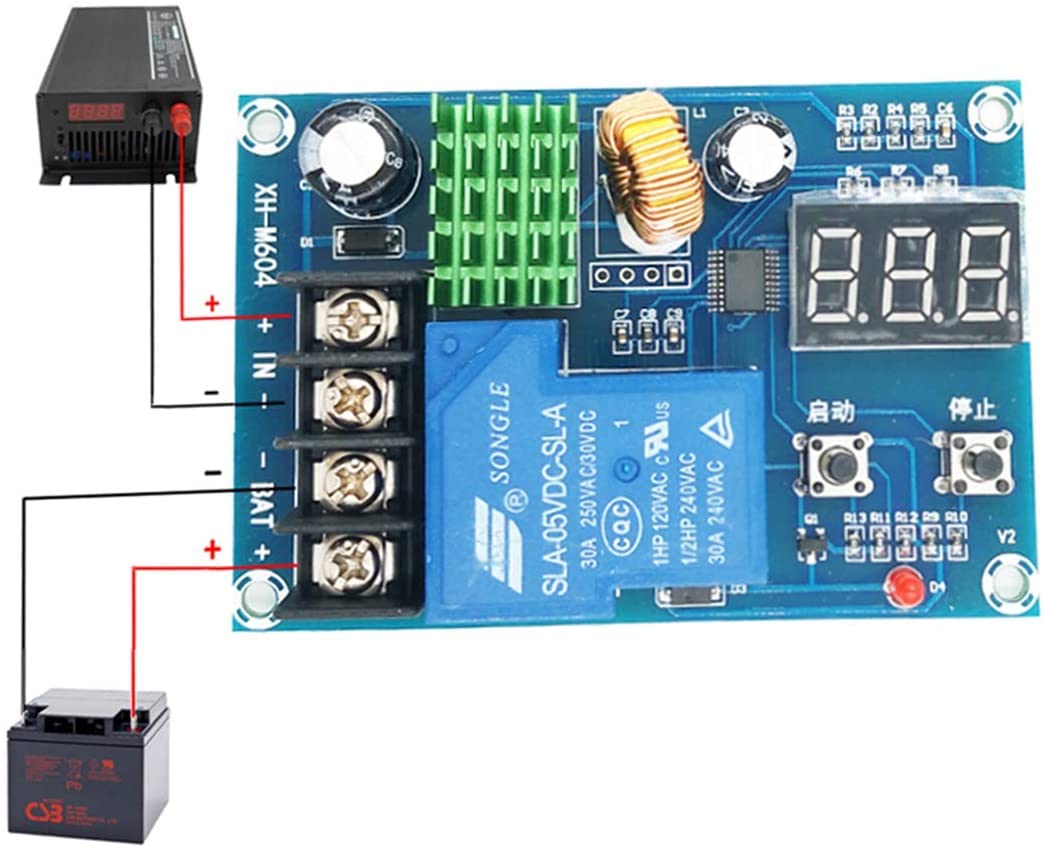

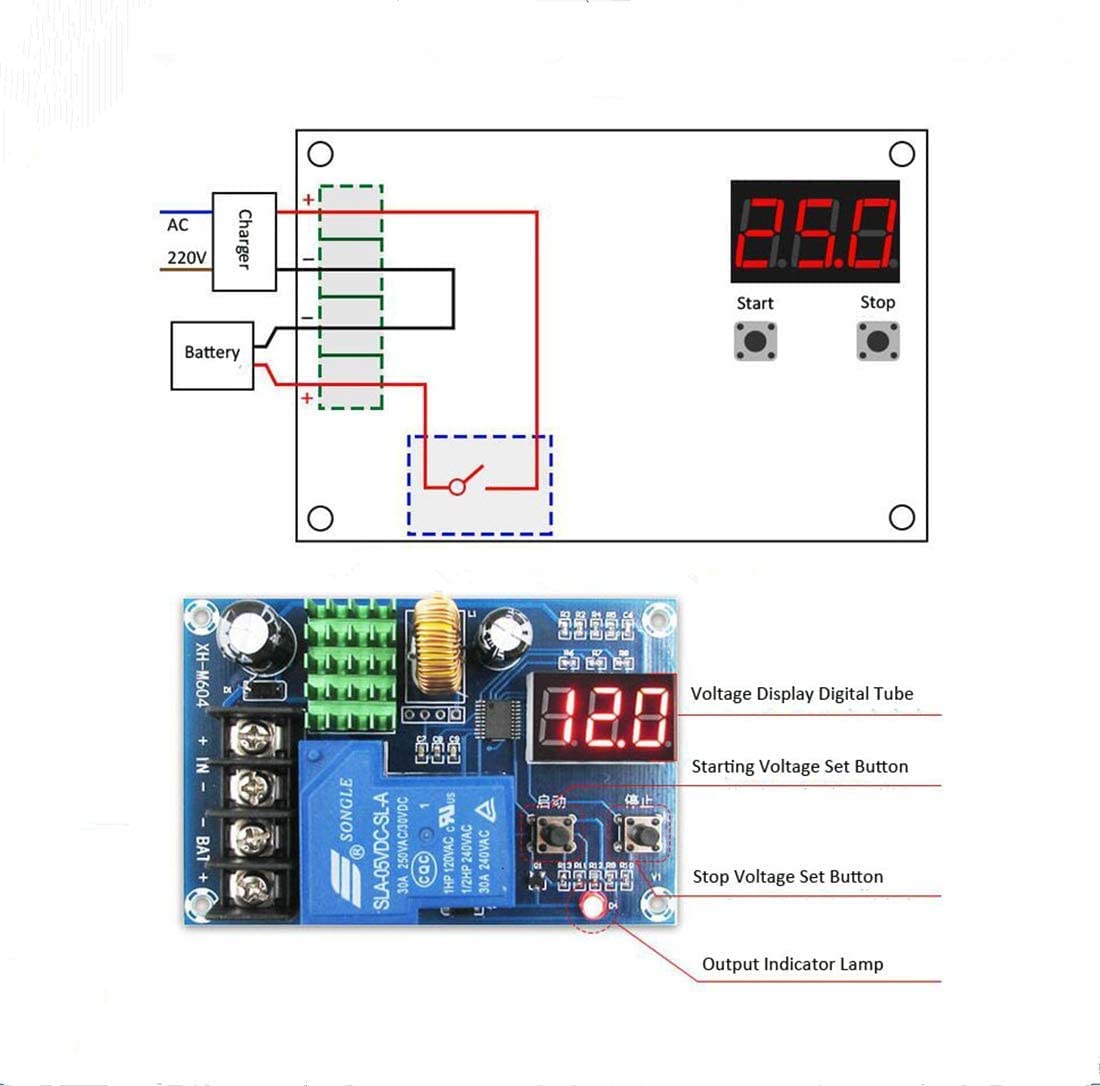

Input charger 6-60v in the IN end, connect storage battery in OUT end

Is quite intelligent, helping save electricity, and safe

Automatic power outage, save energy saving energy, prolong battery life
