2S-05A Multi-Cell Li-Ion Battery Charger Module with Voltage Stabilizer - Solar Charging for Portable Devices, DIY Projects & Emergency Power Supply

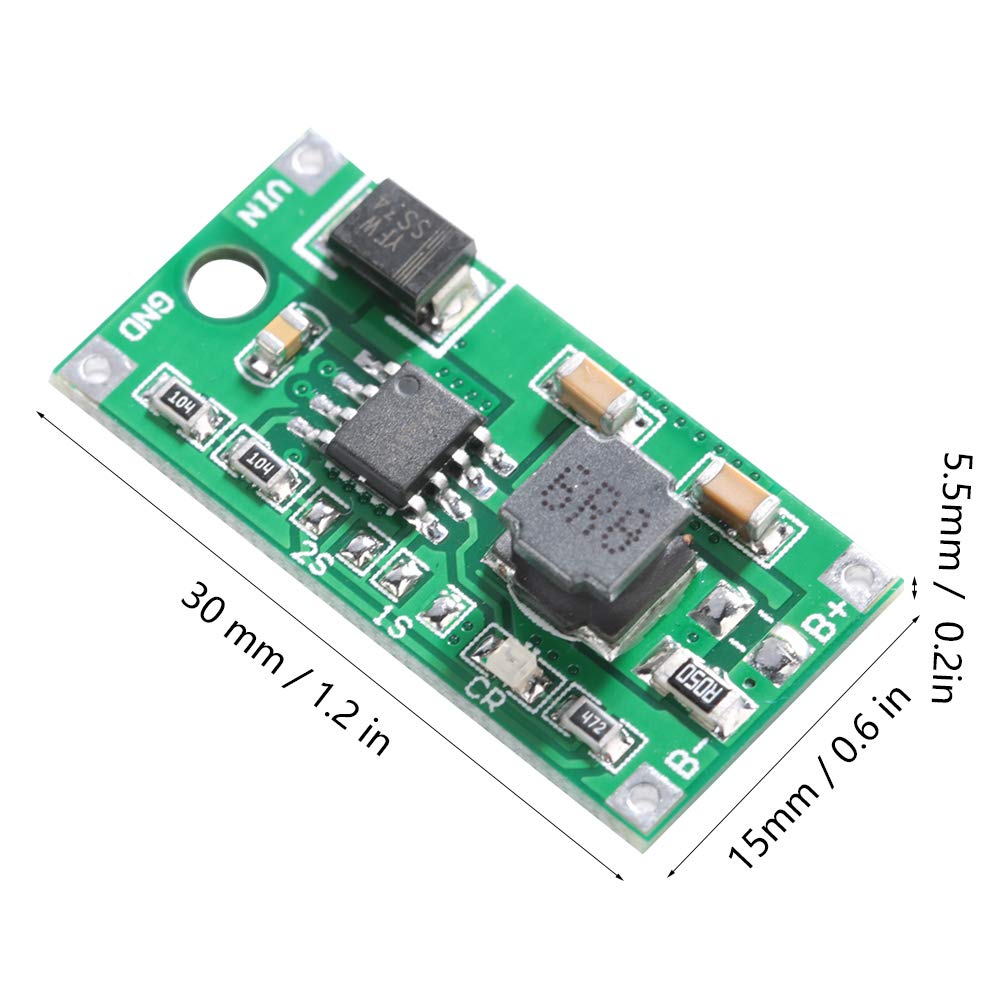

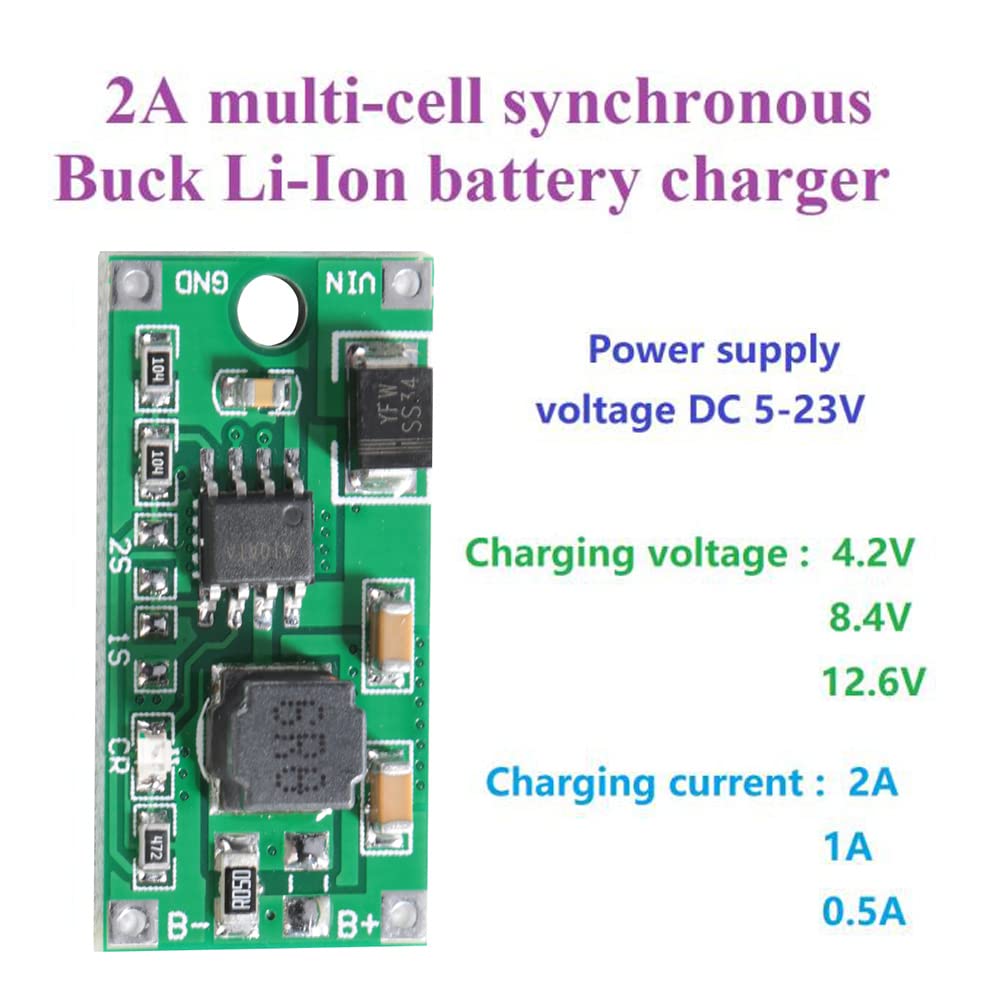

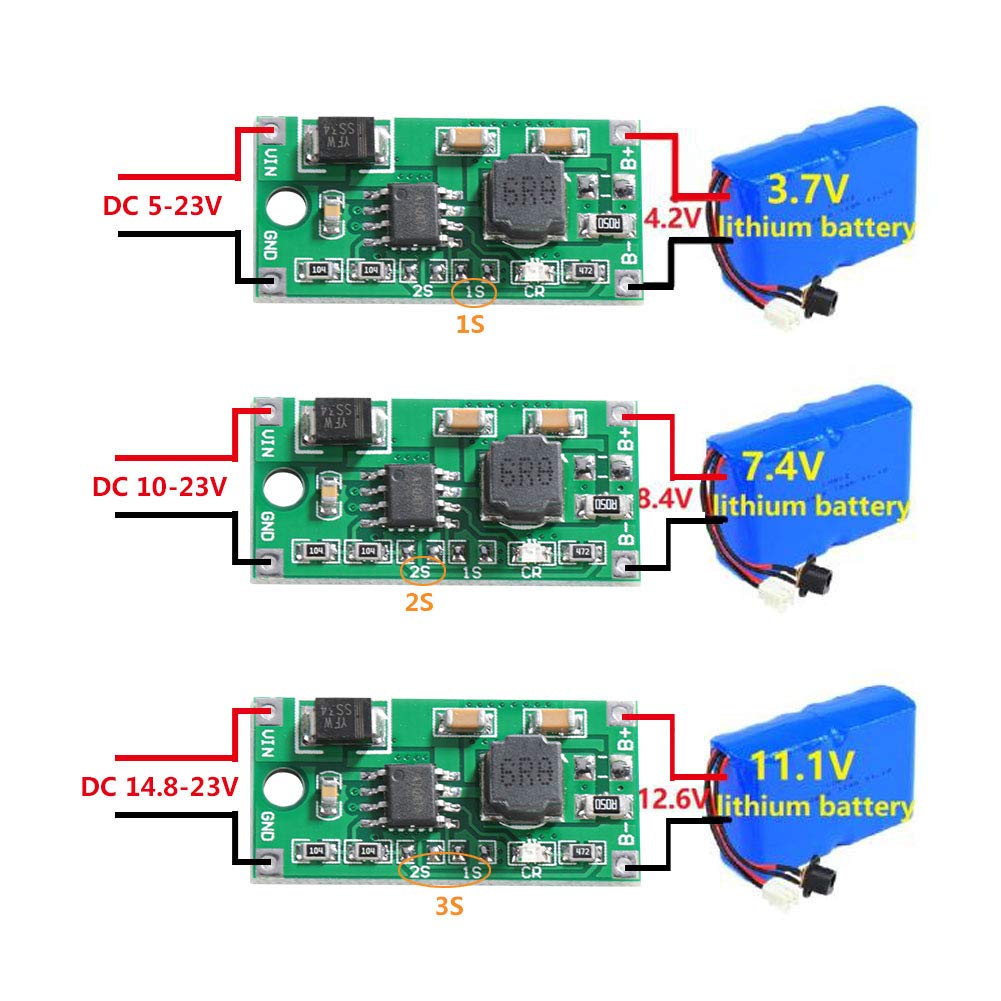

Specification:1-Cell(1S) 4.2V Version:Input voltage : DC 4.5V-23V(Recommend DC 5V/6V/9V/12V/15V)Charging voltage : 4.2VCharging current : 1A/2A(Please choose the parameters you need when purchasing)2-Cell(2S) 8.4V Version:Input voltage : DC 10-23V(Recommend DC 12V/14.8V/15V/18V)Charging voltage : 8.4VCharging current : 0.5A/1A(Please choose the parameters you need when purchasing)3-Cell(3S) 12.6V Version: Input voltage : DC 14.8-23V(Recommend DC 14.8V/15V/18V)Charging voltage : 12.6VCharging current : 0.5A/1A(Please choose the parameters you need when purchasing)Led indicator :Bright: Charging Off: full Blinking: almost full; If the charging current is too large (or the battery capacity is small), it will quickly enter the flashing state, and the charging current should be reduced.Operating ambient temperature : -40° to +85°Storage temperature : -65° to +125°Size : 30 * 15 * 5.5mm / 1.2 * 0.6 * 0.2inWeight: 2.5 g / 0.1 oz(approx.) Package list:1 x Battery Charger module

High Quality Electronic Component This power module adopted of high quality electronic components, and precision process, ensure for the durability. Stable performance and high efficiency conversion rate.

Bright Charging Off full Blinking almost full; If the charging current is too large (or the battery capacity is small), it will quickly enter the flashing state, and the charging current should be reduced.

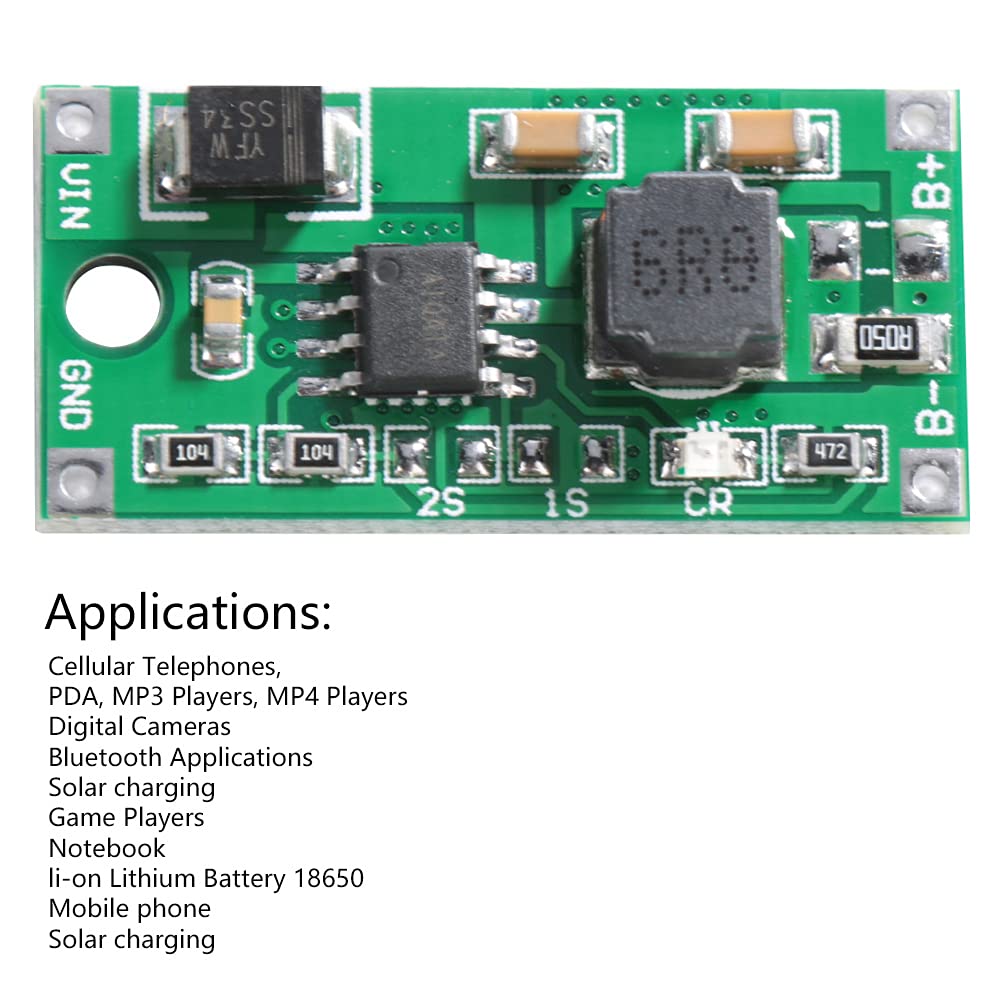

ApplicationsCellular Telephones;PDA, MP3 Players, MP4 Players;Digital Cameras; Bluetooth Applications; Solar charging; Game Players Notebook; li-on Lithium Battery 18650; Mobile phone;Audio equipment;Portable Devices

Strict Standard In the pursuit of high quality and top performance, the battery charger is manufactured in accordance with standard specifications, and strictly in accordance with factory quality control. The terminal has good contact performance, ensure stable working

Overcharge Protection With overcharge protection, over discharge protection, over current protection, short circuit protection, temperature protection, this battery board have strong performance in charging control.
